Aircraft Warning Lights for Wind Turbines
CEL infrared aviation lighting for onshore Wind Turbines. MOD compliant lighting for RAF low level flying for accident avoidance. Make your wind turbine structure visible with approved infrared lighting for use with military issue Night Vision Goggles. Value engineered European made LED based lighting and controllers for monitoring by BMS and GSM.
MOD APPROVED INFRARED 850nm LIGHTING

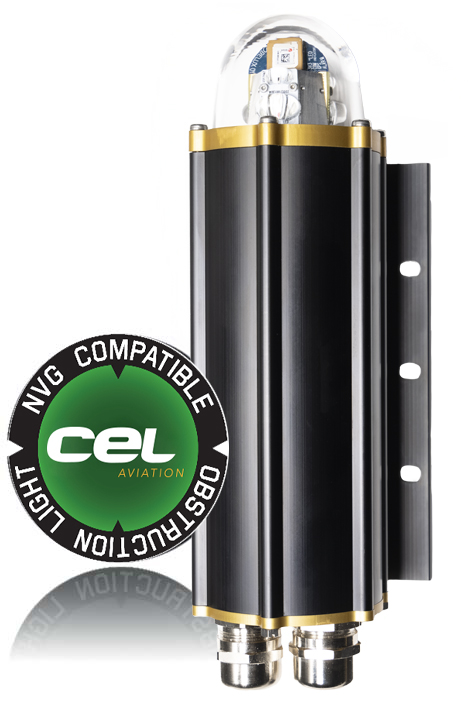

CEL-IR850-Series II – LED
Night vision goggle compatible 850nm infrared obstruction light for wind turbines and other vertical structures that cause aviation safeguarding concerns
More Information
Optical characteristics:
– IR only fl ashing and/or IR and Red fl ashing (Combi Light)
– NVG compliant Infrared 850nm
– Red 25cd or 200cd – colour aviation red
– Horizontal beam 360Åã unrestricted
– Photocell for Day/Night switching
– LED lifetime minimum 100,000hrs
Key Features:
– Based on LED technology
– NVG compliant infrared (IR)
– GPS synchronisation
– Incorporated photocell for Day/Night switching
– Both stand-alone and Modbus operation available
– Extremely low power consumption
– Provides long maintenance free operating time
– 5yr warranty, optional 10yr warranty
– Cold spare operation
– Thermostat controlled smart heater
– Deep discharge protection (DC models)
– Battery powered operation (DC models)
Specifications met:
MOD Obstruction Lighting Guidance, Low Flying Operations Sqn
(MOD CAS-AS LFOS) – 01 Jan 2020
Radiometric characteristics IR:
MOD Infra-Red (IR) Lighting
– Wavelength 750-900nm
– Intensity 600mW/sr min at peak fl ash
– Intensity 1200W/sr max
– 600mW/sr minimum fl ash intensity 30Åã and -15Åã elevation
– 50% reduction btw 25 to 30Åã and -10 to -15Åã acceptable
MOD Visible Lighting
• 25cd or 200cd minimum intensity +15 degÅã and 0Åã
• Red light overspill not exceed 10% intensity at 0Åã
– GPS synchronisation – 60FPM or Morse Code-W (6-sec cycle)
Electrical characteristics:
– AC Voltage Range Nominal 100-250VAC “
– DC Voltage Range 10-60VDC”
– Power Consumption: 25cd-0.3W, 200cd-1.5W, IR-3.5W @60FPM
– Robust overvoltage protection (Type II)
– Isolated RS-485
– Alarm relay max loading: 250VAC @8A; 50VDC @1A
Mechanical characteristics:
– Anodised marine grade aluminum chassis and end parts
– AISI316 acid proof stainless steel screws
– Clear IP65 polycarbonate dome
– Acrylic lenses, UV protected
– Operating temperature range -40…+55ÅãC
– Height 255mm, diameter 104mm
– Weight 1.3kg (without mounting set)
– Terminal block for 0.2…4mm.(24-12 AWG) cables
– 5yr warranty, optional 10yr warranty
Options:
CEL-CP-M1-T – Central Controller Modbus Unit
CEL-IR850-24-CST
Military Approved INFRARED Aircraft Warning Lighting that are fully compliant to DIO regs.
Marine grade lights offer protection to Wind Turbines, Met Masts and other vertical structures where low level military flights are conducted. Lights approved for use with all military issue Night Vision Goggles.
More Information
Key Features:
850nm infrared wavelength – controlled by photocell & flasher modes – Suitable for offshore use – Marine Grade with A316 end parts – Extremely reliable – 5yr warranty – longest in the industry
Specifications met:
DIO – verified Qinetiq
Optical characteristics:
Colour INFRARED 850nm – Visual RED 40cd – Horizontal beam 360° – Vertical radiation pattern -15° – +30° – Typical intensity 300mW/sr, Peak 600mW/sr
Electrical characteristics:
Operating voltage 24VDC – Constant current PFC – 15W power consumption best in industry –
Meets: EMC (Emissions): EN 61000-6-4 – EMC (Immunity): EN 61000-6-2
Mechanical characteristics:
Marine grade aluminium body (C5MHigh) – Degree of protection IP66, Height 200mm, diameter 140mm, Weight inc mounting set 3.4kg.
Additional Factory-Installed Options:
Visual Red
Independent Verification:
Qinetiq, Finas, Aalto University, Nemko
CEL-IR850-R-24-CST
Military Approved INFRARED and visual RED Aircraft Warning Lighting that are fully compliant to DIO, ICAO, EASA regs.
Marine grade lights offer protection to Wind Turbines, Met Masts and other vertical structures where low level military flights are conducted. Lights approved for use with all military issue Night Vision Goggles.
More Information
Key Features:
850nm infrared wavelength – RED fixed or flashing – controlled by photocell & flasher modes – Suitable for offshore use – Marine Grade with A316 end parts – Extremely reliable – 5yr warranty – longest in the industry.
Specifications met:
ICAO, EASA, FAA, DIO – verified Qinetiq, Finas, Intertek
Optical characteristics:
Colour INFRARED 850nm – Visual RED 40cd – Horizontal beam 360° – Vertical radiation pattern -15° – +30° – Typical intensity 300mW/sr, Peak 600mW/sr
Electrical characteristics:
Operating voltage 24VDC – Constant current PFC – 15W power consumption best in industry
Meets: EMC (Emissions): EN 61000-6-4 – EMC (Immunity): EN 61000-6-2
Mechanical characteristics:
Marine grade aluminium body (C5MHigh) – Degree of protection IP66, Height 200mm, diameter 140mm, Weight inc mounting set 3.4kg.
Independent Verification:
Qinetiq, Finas, Aalto University, Nemko
CEL-LIR
Robust Small Form Intelligent Visual Red and Infrared Light is fully compliant to ICAO, EASA, DIO and FAA and 850nm Night Vision Compatible.
Marine grade lights offer built-in Modbus intelligent network integration, photocell & flasher modes, fault monitoring etc
More Information
Key Features:
10 & 32cd (effective) RED fixed or flashing – Supports both stand-alone and
Modbus operations – Suitable for offshore use – Marine Grade with A316 end
parts – Extremely reliable – design lifetime 20 years – 5 year warranty –
longest in the industry
Specifications met:
ICAO, EASA, FAA, DIO – verified Qinetiq, Finas, Intertek
Optical characteristics:
– 10cd fixed or flashing, – 32cd fixed or flashing, – Colour aviation RED, –
Horizontal radiation pattern 360°, – Vertical radiation pattern >10°, –
Infrared wavelength 850nm (>25 mW/sr) – Total Radiant Flux 440mW
Electrical characteristics:
Operating voltage 100-240VAC – Operating voltage 10-60VDC – Constant current
PFC – Up to 4W power consumption best in industry
Meets: EMC (Emissions): EN 61000-6-4 – EMC (Immunity): EN 61000-6-2
Mechanical characteristics:
Marine grade aluminium body (C5MHigh) – Degree of protection IP66, Height 255mm,
diameter 104mm, Weight 1.1kg.
Independent Verification:
Qinetiq, Finas, Aalto University, Nemko
MEDIUM INTENSITY LIGHTING TYPE B/C
CEL-MI-ICAO-AC-2KR-IR
Robust Small Form Intelligent Red Medium Intensity Lights are fully compliant to ICAO, EASA, DIO and FAA.
Marine grade lights offer built-in Modbus intelligent network integration, GPS, photocell & flasher modes, fault monitoring etc
ICAO MEDIUM INTENSITY TYPE B/C
More Information
Key Features:
2,000cd (effective) RED fixed or flashing – Supports both stand-alone and Modbus operations – Suitable for offshore use – Marine Grade with A316 end parts – Extremely reliable – design lifetime 20 years – 5 year warranty – longest in the industry – Luminosity adjustable 10, 30 and 100%
Specifications met:
ICAO, EASA, FAA, DIO – verified Qinetiq, Finas, Intertek
Optical characteristics:
– 2,000cd (effective) – Colour aviation RED- Horizontal beam 360°- Vertical beam 3°- Maximum intensity at -1° is less than 1,125cd – Maximum intensity at -10° is less than 75cd
– NVG compliant infrared (850nm) as an option
Electrical characteristics:
Operating voltage 90-265VAC – Constant current PFC – 17W power consumption best in industry
Meets: EMC (Emissions): EN 61000-6-4 – EMC (Immunity): EN 61000-6-2
Mechanical characteristics:
Marine grade aluminium body (C5MHigh) – Degree of protection IP66, Height 347mm, diameter 160mm, Weight 5kg.
Additional Factory-Installed Options:
Cold-climate version (CCV)
Night Vision compliant infrared (IR)
Independent Verification:
Qinetiq, Finas, Aalto University, Nemko
Contact us for more information
